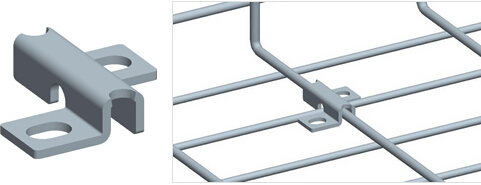

| CCP | |
|---|---|
 |
Apply to: fix wire mesh cable tray on machine, wall, floor or other solid surface directly. Fit for: wire diameter from 4mm to 6mm. Include: CCP×1 Feature: easy to install, fit for various mounting solutions. |

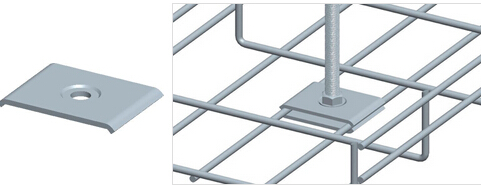

| CHD | |
|---|---|
 |
Apply to: hang wire mesh cable tray, or fix trays onto machine or other solid surface directly. Fit for: wire diameter from 4mm to 6.0mm. Include: CHD×1. Feature: multiple used, easy to install. |

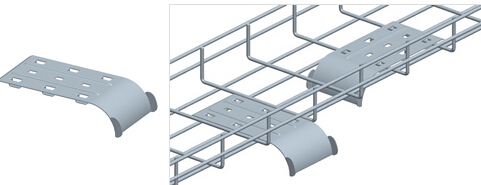

| CGD | |
|---|---|
 |
Apply to: run cables out of cable tray. Fit for: wire diameter of basket tray from 3.5mm to 6.0mm, width of trays not less than 150mm. Include: Unit×1 Feature: protect cables, convenient. |

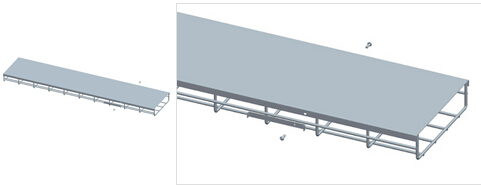

| CVR | |
|---|---|
 |
Apply to: cover on cable trays to avoid dust. Fit for: wire diameter from 3.5mm to 6.0mm, all width of trays. Include: Unit×1 Feature: easy installation. |

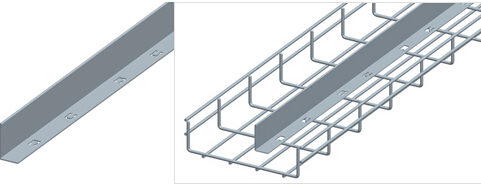

| DVR | |
|---|---|
 |
Apply to: divide power cables and data cables for good EMC. Fit for: wire diameter from 3.5mm to 6.0mm, all width of trays. Include: Unit×1. Feature: DVR50/100/150 for cable tray height of 50mm/100mm/150mm. |

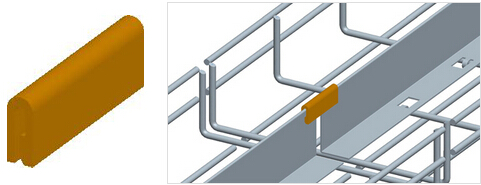

| COD | |
|---|---|
 |
Apply for: connect 2 pieces of DVR. Fit for: DVR50/100/150. Include: COD×1. Feature: easy to install. |

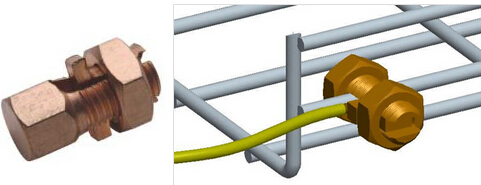

| EHB-A / EHB-B | |
|---|---|
 |
Apply for: wire mesh cable tray earthing. Fit for: EHB-A fit wire diameter from 3.5mm to 5.0mm, EHB-B fit wire diameter from 5.0mm to 6.0mm. Include: Unit×1. Feature: made of copper, good electrical continuity. |

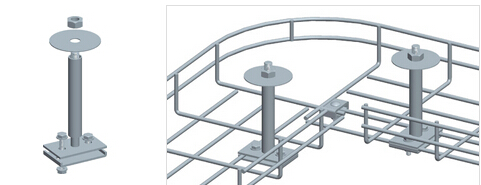

| CBR | |
|---|---|
 |
Apply to: run cables easily for cable tray L and T junctions. Fit for: wire diameter from 5.0mm to 6.0mm, all width of trays. Include: Unit×1. Feature: easy installation, protect cable. |

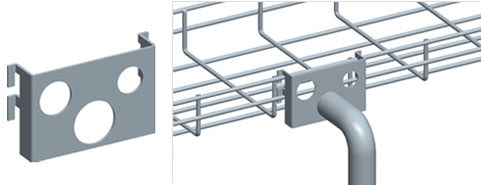

| CDH | |
|---|---|
 |
Apply to: 20mm, 25mm, 32mm diameter pipe and conduit exit from cable tray. Fit for: cable tray wire diameter from 3.5mm to 6.0mm. Include: CDH×1. Feature: easy to install. |

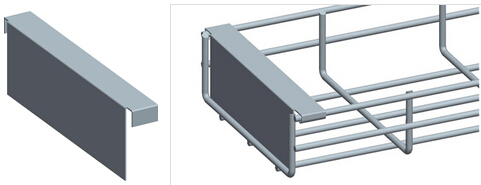

| TTR | |
|---|---|
 |
Apply to: terminate wire mesh cable trays. Fit for: wire diameter from 3.5mm to 6.0mm, all width of trays. Include: Unit×1. Feature: easy installation. |

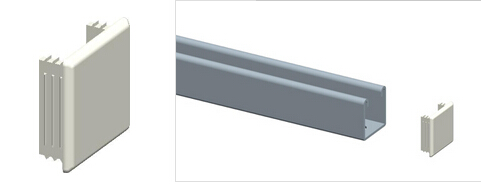

| CCT | |
|---|---|
 |
Apply to: close the end of strut channel. Fit for: 41×41 strut channel. Include: Unit×1 Feature: good looking, safe touching. |

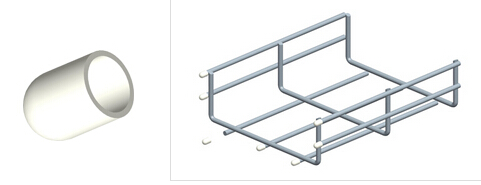

| CAP | |
|---|---|
 |
Apply to: cap onto the wire cutting edge. Fit for: wire diameter from 4.0mm to 6.0mm. Include: Unit×1. Feature: safe touching for making bends, tees, cross and other one-site making junctions. |

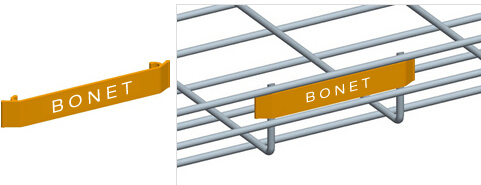

| SGN | |
|---|---|
 |
Apply to: label wire mesh cable trays to show brand name. Fit for: wire diameter from 4.0mm to 6.0mm. Include: 1 unit. Feature: made of plastic, OEM available. |

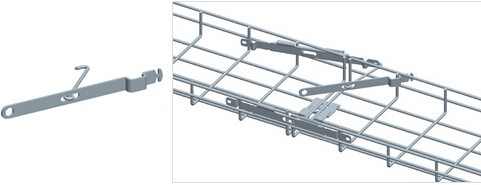

| HDL | |
|---|---|
 |
Apply to: SPL coupling. Fit for: SPL(view page of couplers). Include: HDL×1. Feature: easy use tool for SPL. |
| CUT | |
|---|---|
 |
Apply to: cut wires to make bends, tees, crosses and other junctions. Fit for: all sizes of wire mesh cable trays. Include: CUT×1. Feature: easy to use. |
