Aluminum Ladder Tray

Aluminum Ladder Tray Main Section

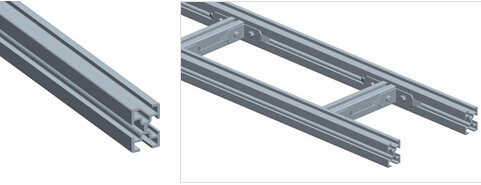

LHJ-ZL-YH
LHJ-ZL-YH Ladder cable tray side rails made of aluminum extrusions. Length of 3 meters. Loading capacity above 300kg per meter.

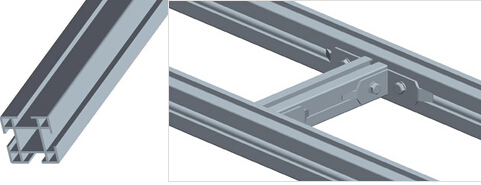

LHJ-HL-YH
LHJ-HL-YH Ladder cable tray rungs made of aluminum extrusions. Rung space from 250mm to 330mm.
Part Number Finishing Side Rail Dimension Rung Dimension Recommended Rung Space
TS-LHJ-DXC32K-200-3000 Oxidation 31mm*45mm 32mm*32mm 300mm
TS-LHJ-DXC32K-300-3000
TS-LHJ-DXC32K-400-3000
TS-LHJ-DXC32K-500-3000
TS-LHJ-DXC32K-600-3000
TS-LHJ-DXC32K-700-3000
TS-LHJ-DXC32K-800-3000
TS-LHJ-DXC32K-900-3000
TS-LHJ-DXC32K-1000-3000

Bonet aluminum extrusions ladder cable tray

Aluminum Ladder Tray Accessories

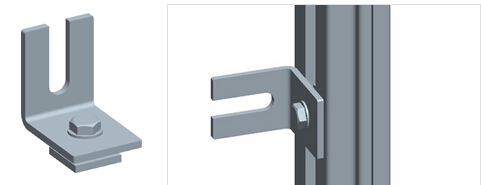

PJ-WK-EZ
PJ-WK-EZ Apply to: fixing ladder cable tray side rail onto wall. The wall mount installation hardware.

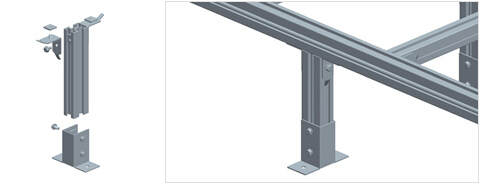

PJ-STD-EZ
PJ-STD-EZ Apply to: mounting the aluminum ladder tray onto rack or over floor.

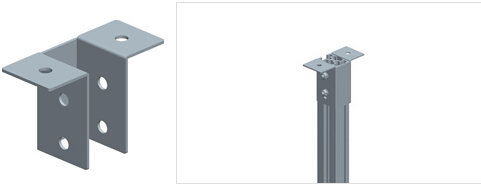

PJ-THB-EZ
PJ-THB-EZ Apply to: ladder cable tray ceiling mounting.

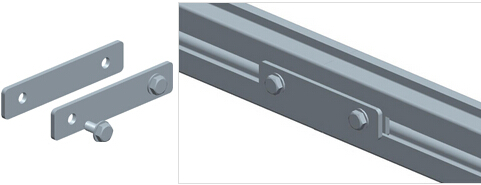

PJ-CNT-EZ
PJ-CNT-EZ Apply to: side rail coupler, connecting two pieces of ladder cable tray.

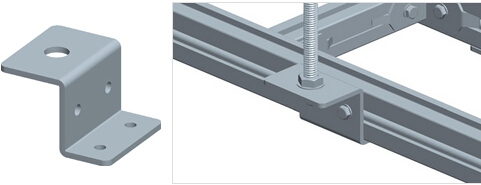

PJ-Z-EZ
PJ-Z-EZ Apply to: ceiling mounting with thread rods. Function eaqual to hooks.

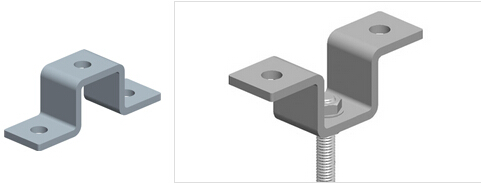

PJ-JXJ-EZ
PJ-JXJ-EZ Apply to: ceiling mounting components to replace using single drop in anchors. Fit for heavy duty cable trays. This hardware would disperse gravity forces and therefore reinforce the weight loading capacity.

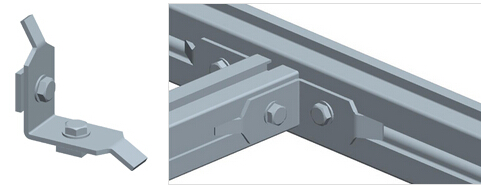

PJ-V-EZ
PJ-V-EZ Apply to: fixing the aluminium alloy extrusions ladder cable tray side rails and rungs. Also used for our floor our rack mounting component PJ-STD-EZ.
