Wire Mesh Cable Tray Ceiling Mounting

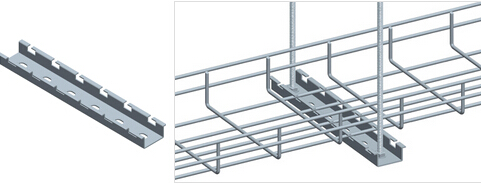

OBR
OBR

Apply to: hang trays under ceiling.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: 1 unit, (thread rods and nuts are optional).
Feature: common and convenient.

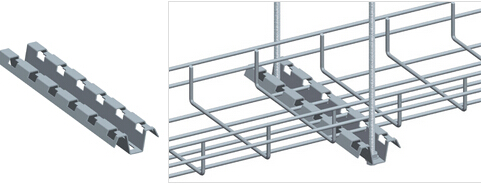

MBR
MBR Apply to: hang trays under ceiling
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: 1 unit, (thread rods and nuts are optional).
Feature: can be cut to suitable length on-site according to demands.

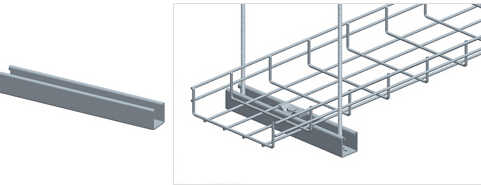

CNL
CNL Apply to: multiple usage, not only for supporting the basket cable trays.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: 1 unit
Feature: stronger than OBR.

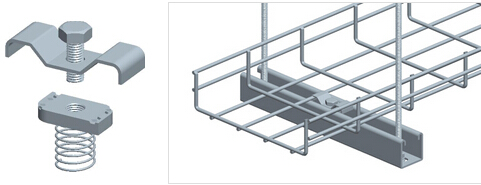

HDC
HDC Apply to: fix trays on CNL.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: HDC×1, M6 spring nut×1, M6 bolt×1.
Feature: easy to install.

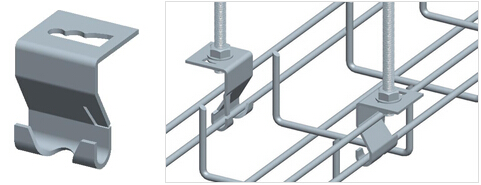

HKS
HKS Apply to: hang small and light duty trays.
Fit for: wire diameter from 3.5mm to 6.0mm, tray width below 300mm.
Include: 1 unit (thread rods and nuts are optional).
Feature: economical, easy to install.

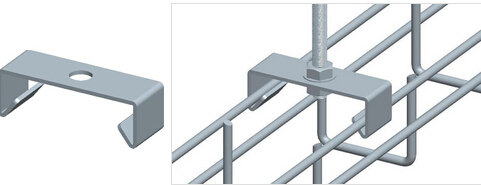

THR
THR Apply to: hang 50mm width trays under ceiling.
Fit for: 50mm wide trays, wire diameter from 3.5mm to 6.0mm.
Include: 1 unit (thread rods and nuts are optional).
Feature: most economical for 50mm wide tray. Light weight loading.

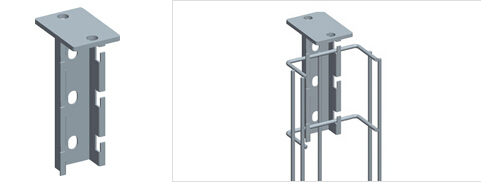

THB
THB Apply to: fix trays under ceiling vertically.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: Unit×1
Feature: not swing, multiple used for big size trays.

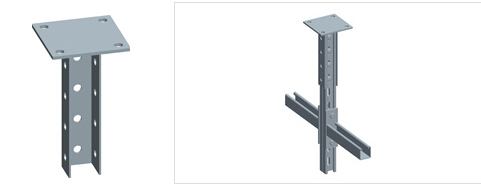

TCH
TCH Apply to: hang cable trays under ceiling.
Fit for: wire mesh cable tray width below 400mm.
Include: TCH×1, M10×60BOLT&NUTS×4.
Feature: for multi-layers installation, height adjustable.

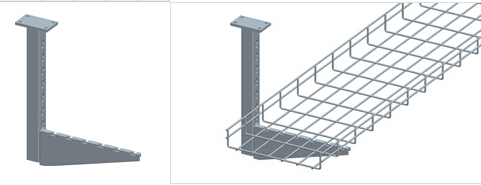

RFB
RFB Apply to: mount cable trays under ceiling.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: WBK×1, Pole×1.
Feature: no swing, height adjustable.

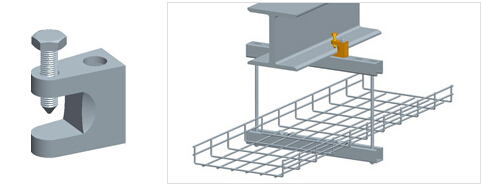

CIB
CIB Apply to: install wire mesh cable trays under I-beam or U-channel steel.
Fit for: rod 10mm-12mm in Dia.
RSH
PJ-JXJ-EZ Apply to: strengthen hanging capacity of thread rods.
Fit for: rod diameter from 10mm to 12mm.
Include: 1 unit.
Feature: strong weight loading.
