Wire Mesh Cable Tray Couplers

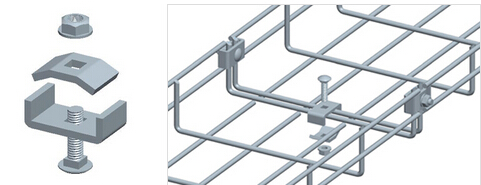

KK34
KK34

Apply to: 1. connect two straight sections of wire mesh cable trays. 2. make bends.
Fit for: wire diameter from 4.0mm to 6.0mm.
Include: KK34-top * 1, kk34-bottom * 1,
M6 * 20bolt * 1, M6 Nut *1.
Feature: 1. Strong connection; 2. Convenient.

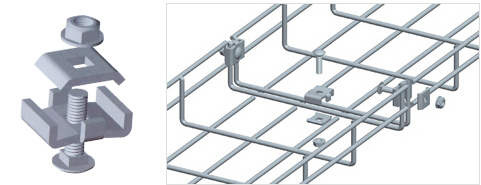

KK28
KK28 Apply to: 1. connect two straight sections of wire mesh cable trays. 2. make bends
Fit for: wire diameter from 3.5mm to 5.0mm.
Include: KK28-top×1, KK28-bottom×1,M6×20bolt×1, M6 Nut×1
Feature: 1. Strong connection. 2. Smaller than KK34.

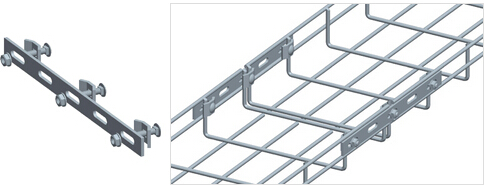

SBR
SBR Apply to: connect two straight sections of wire mesh cable trays.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: Bar×1, KK34-top×3, M6×20bolt×3,M6 Nut×3.
Feature: very strong connection.

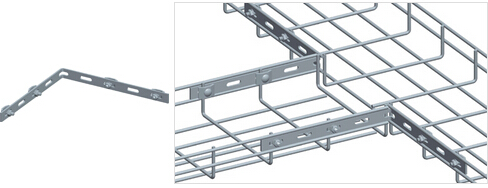

CSB
CSB Apply to: make tees and crosses.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: Bar×1, KK34-top×4, M6×20bolt×4,M6 Nut×4.
Feature: 1. very strong connection 2. easy to install.

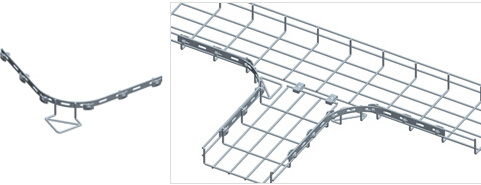

RC90
RC90 Apply to: make tees and crosses.
Fit for: wire mesh cable tray height of 50mm,100mm and 150mm.
Include: RC90×1, KK34-top×6, M6×20bolt×6, M6 nut×6.
Feature: strong connection, easy to install, good looking.

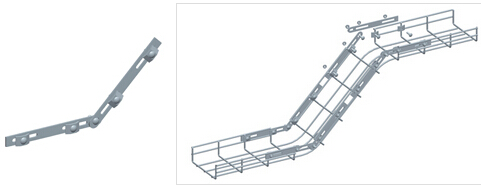

AJC
AJC Apply to: strengthen the connection of internal and external bends of wire mesh cable tray.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: Bar×1, KK34 top×4, M6×20bolt×5, M6 nut×4
Feature: improve the connection, easy to fix.

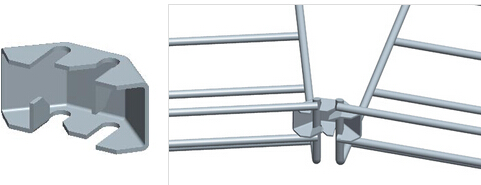

FLK
FLK Apply to: make bends.
Fit for: wire diameter from 4.0mm to 6.0mm.
Include: 1 unit.
Feature: 1. boltless. 2. fast installation.

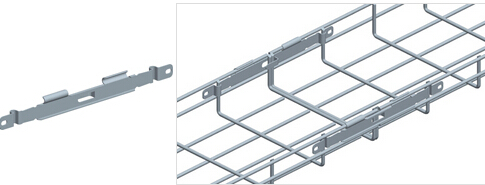

SPL
SPL Apply to: connect two straight sections of trays.
Fit for: wire diameter from 4.5mm to 5.5mm.
Include: 1 unit.
Feature: 1. boltless. 2. fast installation.

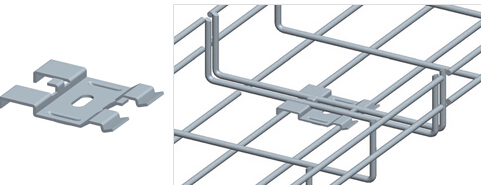

BTC
BTC Apply to: connect two straight sections of trays from the bottom.
Fit for: wire diameter from 4.5mm to 5.5mm.
Include: 1 unit.
Feature: 1. boltless. 2. fast installation.
