Wire Mesh Cable Tray Floor & Rack Mounting

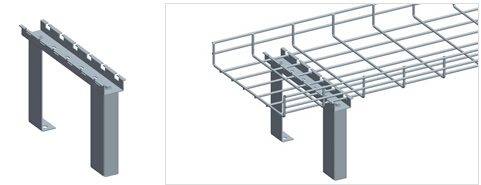

EFS
EFS

Apply to: on floor or rack mounting.
Fit for: wire diameter from 3.5mm to 6.0mm, trays width from 100mm to 600mm.
Include: bar×1, leg×2, bolt and nut×1 set.
Feature: easy installation.

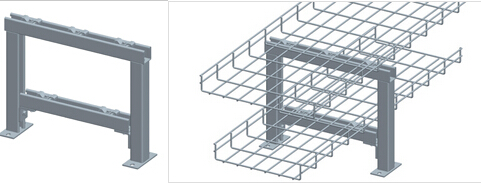

BTS
BTS Apply to: on floor or on rack mounting, available for single or multiple layer installation.
Fit for: trays width from 100mm to 600mm.
Include: C-Channel, Support Leg×2, HDC set×6 (spring nut with fix hardware), L-type height fixer×2
Feature: multi-layers installation, height adjustable. Standard height 300mm, can be costomized.

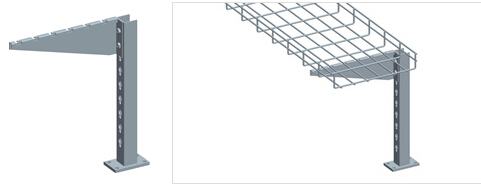

FFS
FFS Apply to: support trays on floor
Fit for: wire diameter from 3.5mm to 6.0mm, width from 100mm to 600mm.
Include: WBK×1, Pole×1.
Feature: height adjustable.

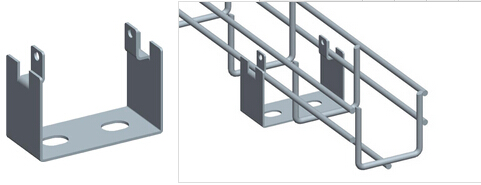

50FSD
50FSD Apply to: support 50mm wide trays on floor or top of server racks.
Fit for: wire diameter from 3.5mm to 6.0mm, 50mm wide basket trays.
Include: 1 unit.
Feature: easy installation, economical.

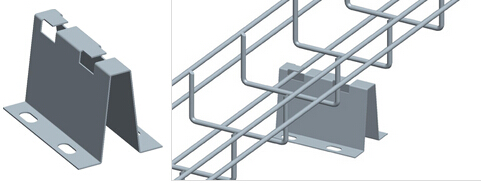

100FSD
100FSD Apply to: on floor or on rack mounting.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: 1 unit
Feature: 100mm wide. Multiple used for trays width over 100mm.
SPB
SPB Apply to: support trays on floor.
Fit for: wire diameter from 3.5mm to 6.0mm, trays width from 100mm to 600mm.
Include: 1 unit
Feature: easy installation and economical.
OBR
OBR Apply to: fix trays onto floor.
Fit for: wire diameter from 3.5mm to 6.0mm.
Include: 1 unit, (thread rods and nuts are optional).
Feature: cling to the floor.

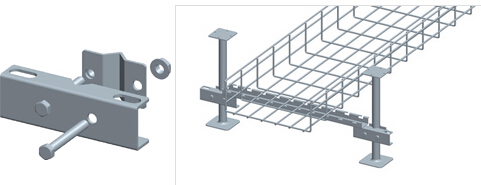

VCN
VCN Apply to: support trays under raised floor
Fit for: wire diameter from 3.5mm to 6.0mm, trays width from 100mm to 500mm.
Include: V CLIP×2, 550mm length OBR bar×1, necessary bolts and nuts.
Feature: Fix on raised floor supporting legs, height adjustable.
