Safe Working Load (SWL)

The wire basket cable trays shall be installed at a temperature between -5°C to +60°C to make sure the material have better mechanical resistance. And the trays shall not exceed maximum loads as specified by the safe working load data below.

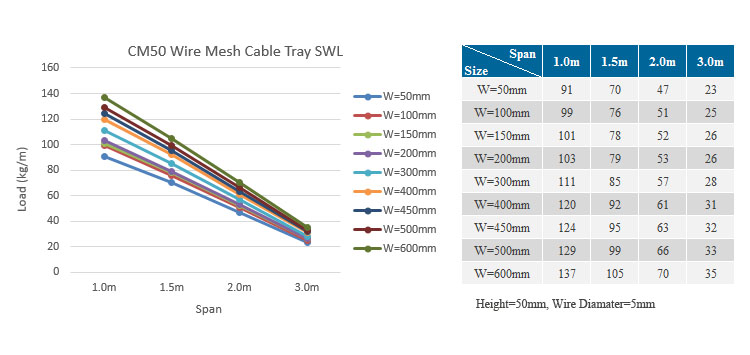

1. CM50 Wire Cable Tray SWL

Bonet CM50 wire mesh cable tray SWL data

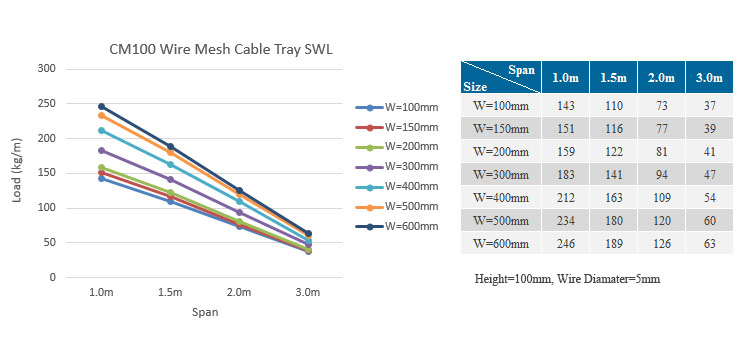

2. CM100 Wire Cable Tray SWL

Bonet CM100 wire mesh cable tray SWL data

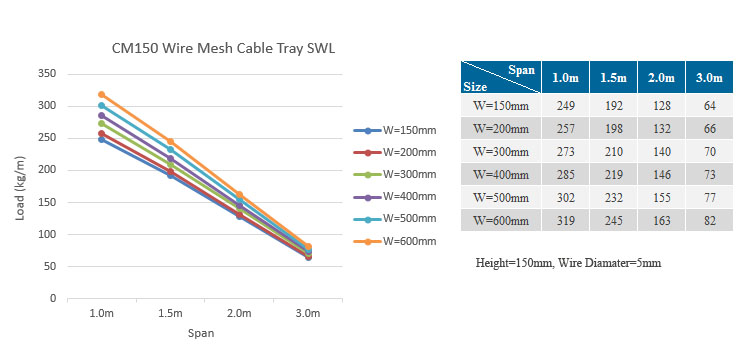

3. CM150 Wire Cable Tray SWL

Bonet CM150 wire mesh cable tray SWL data

Considering safety and costs, the wire cable trays are suggested to be supported at a span of 2.0m by trapeze, wall, floor or channel mounting methods. Make the first span 1.5m, and keep span of 2.0m for the following cable trays. The coupler is 0.5m away from the supporting position which can get 100% performance. View illustration as Figure A below.

For heavy duty loading (mainly for CM150 wire mesh cable trays), 1.5m supporting span is suggested. Please view details as Figure B below.

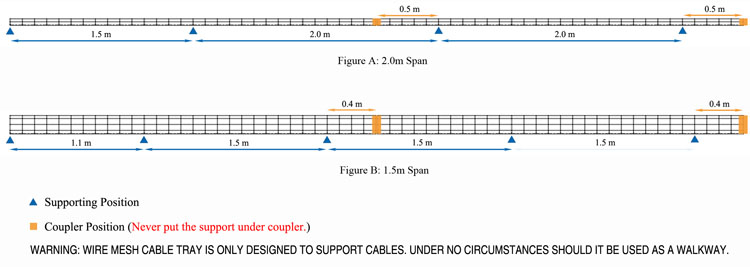

wire mesh cable tray span distance

When there are changes of level and direction, it is recommended to place supports as below.

positions of the supports for wire mesh cable tray bends, tees, crosses, etc.



  • *Please note never put the support under coupler, and do not walk on cable trays.
