Bonet cable tray offers several connecting solutions for its wire mesh cable tray systems. Let’s see how to select suitable connector for the project.

https://www.cnbonet.com/wire-mesh-cable-tray/couplers.html

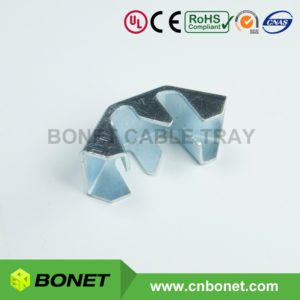

KK34 is the most common recommended item for connecting two pieces of wire mesh cable trays. Suitable for 4mm and 5mm wire diameter. Also can be used for making bends, tees and crossed.

SBR is used for connecting wire mesh cable tray straight sections. Though purely use KK34 coupling kit is also available, cable tray systems mounted with SBR coupling bars will getting much more solid.

SPL is the boltless solution similar as SBR. It can shorten installing time with suitable pulling tool. To matching SPL, BTC is the boltless solution to replace KK34 at the bottom of cable trays. While SPL is not available for HDG and stainless steel material.

FLK is ideal for making big radius bends.

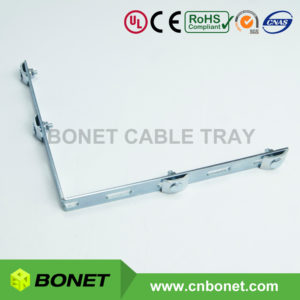

CSB is used for forming wire cable tray bend, tee and cross. RC90 fuction is the same as CSB, but RC90 offer camber buffer for cables, and of course is sold with more expensive prices.

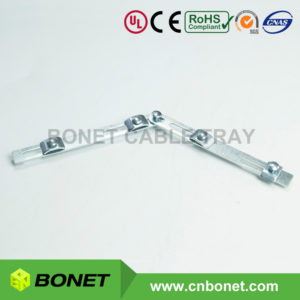

AJC is the ideal connector for forming a wire mesh cable tray inside and outside raiser. It is flexible to adjust the angle.

Above are the connectors of Bonet Cable Basket. Finally we would like to remind that never put the support under coupling positions.
